Key Cutters, Side and Face Milling Cutters

Key Cutters, Side and Face Milling Cutters

Key Cutters, Side and Face Milling Cutters

These buttons will support and recommend our site to other Internet users. Thank you.

Product description Key Cutters, Side and Face Milling Cutters

Side and Face Milling Cutters According DIN 885A Cobalt 5%

Coarse Tooth Pitch

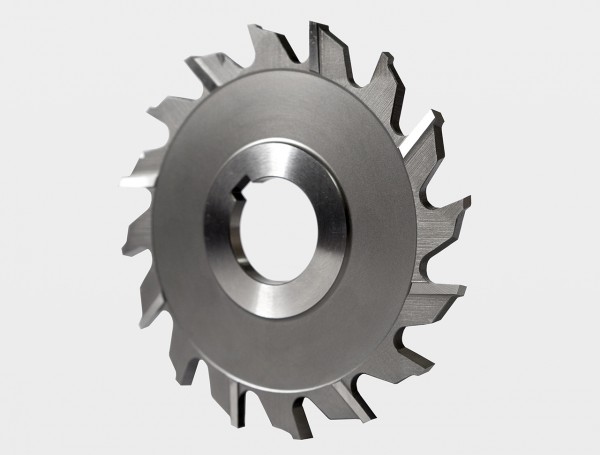

Side and face milling cutters according DIN 885A Cobalt 5%

Side and Face Milling Cutters According DIN 885A Cobalt 5% with Coarse Tooth Pitch:

Diameter Thickness Hole Teeth Nr.
50 3 16 12
50 4 16 12
50 5 16 12
50 6 16 12
50 8 16 12
50 10 16 12
63 3 22 12
63 4 22 12
63 5 22 12
63 6 22 12
63 8 22 12
63 10 22 12
63 12 22 12
63 14 22 12
63 16 22 12
63 18 22 12
80 3 27 14
80 4 27 14
80 5 27 14
80 6 27 14
80 8 27 14
80 10 27 14
80 12 27 14
80 14 27 14
80 16 27 14
80 18 27 14
80 20 27 14
100 3 32 14
100 4 32 14
100 5 32 14
100 6 32 14
100 8 32 14
100 10 32 14
100 12 32 14
100 14 32 14
100 16 32 14
100 18 32 14
100 20 32 14
100 25 32 14
125 4 32 16
125 5 32 16
125 6 32 16
125 8 32 16
125 10 32 16
125 12 32 16
125 14 32 16
125 16 32 16
125 18 32 16
125 20 32 16
125 25 32 16
125 28 32 16
160 6 40 18
160 8 40 18
160 10 40 18
160 12 40 18
160 14 40 18
160 16 40 18
160 18 40 18
160 20 40 18
160 25 40 18
160 32 40 18
200 8 40 24
200 10 40 24
200 12 40 24
200 14 40 24
200 16 40 24
200 18 40 24
200 20 40 24
200 25 4 24
200 32 40 24



Recomended Aplication for Side and Face Milling Cutters According DIN 885A Cobalt 5% with Coarse Tooth Pitch Strenght HSSE / HSS Co5
Recomended cutting speed
Free–cutting steels, general construction steels ≤ 600 MPa 37,5
General construction steels, steel castings ≤ 850 MPa 32,5
Cast iron ≤ 240 HB 30
Copper–zinc alloys, copper–tin alloys ≤ 800 MPa 60 - 100
Aluminium, Aluminium cast alloys Si ≤ 500 MPa 160 - 250

Fine Tooth Pitch

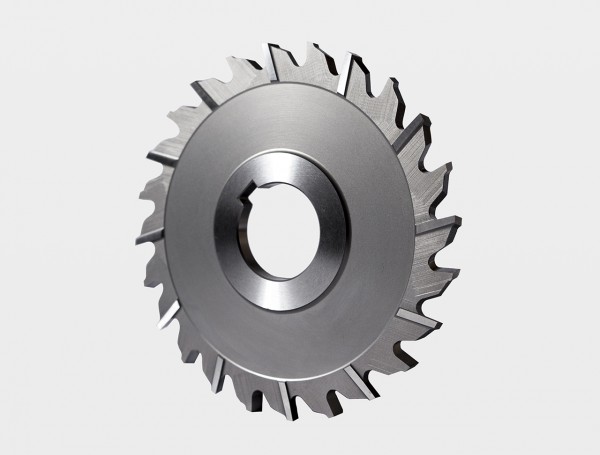

Side and face milling cutters according DIN 885A Cobalt 5%

Side and Face milling Cutters According DIN 885A Cobalt 5% with Fine Tooth Pitch:

Diameter Thickness Hole Teeth Nr.
50 4 16 16
50 5 16 16
50 6 16 16
50 8 16 16
50 10 16 16
63 4 16 18
63 5 22 18
63 6 22 18
63 8 22 18
63 10 22 18
63 12 22 18
63 14 22 18
63 16 22 18
80 4 27 20
80 5 27 20
80 6 27 20
80 8 27 20
80 10 27 18
80 12 27 18
80 14 27 18
80 16 27 18
80 18 27 18
80 20 27 18
100 4 32 20
100 5 32 20
100 6 32 20
100 8 32 20
100 10 32 20
100 12 32 20
100 14 32 20
100 16 32 20
100 18 32 20
100 20 32 20
100 25 32 20
125 5 32 24
125 6 32 24
125 8 32 24
125 10 32 22
125 12 32 22
125 14 32 22
125 16 32 22
125 18 32 22
125 20 32 22
125 25 32 22
125 28 32 22
160 6 40 26
160 8 40 26
160 10 40 26
160 12 40 26
160 14 40 26
160 16 40 26
160 18 40 26
160 20 40 26
160 25 40 26
160 32 40 26
200 8 40 32
200 10 40 32
200 12 40 32
200 14 40 32
200 16 40 32
200 18 40 32
200 20 40 38
200 25 40 38
200 32 40 38
250 8 40 38
250 10 40 38
250 12 40 38



Recomended Aplication for Side and Face Milling Cutters according DIN 885A Cobalt 5% with Fine Tooth Pitch Strenght HSSE / HSS Co5
Recomended cutting speed
Free–cutting steels, general construction steels ≤ 600 MPa 37,5
General construction steels, steel castings ≤ 850 MPa 32,5
Heat treatable steels ≤ 900 MPa 25
Tool steels high alloyed ≤ 1100 MPa

18
Cast iron ≤ 240 HB 30
Cast iron > 240 HB 22
Corrosion– and acid–proof steels ≤ 850 MPa 10
Copper–zinc alloys, copper–tin alloys ≤ 800 MPa 60 - 100



Double Angle Cutters for JMA Key Duplicating Machines

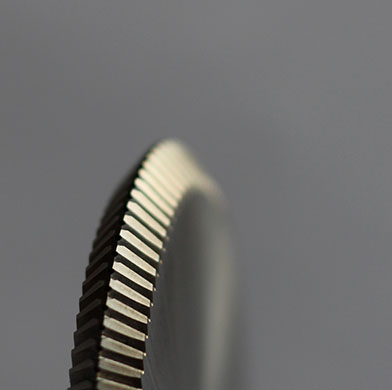

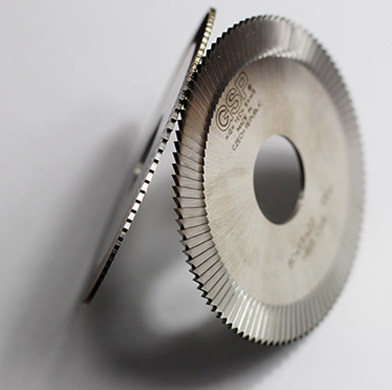

Double Angle Cutter for Key Duplicating Machines

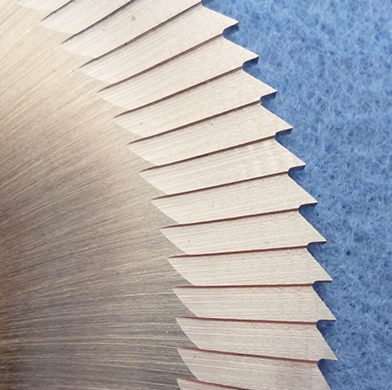

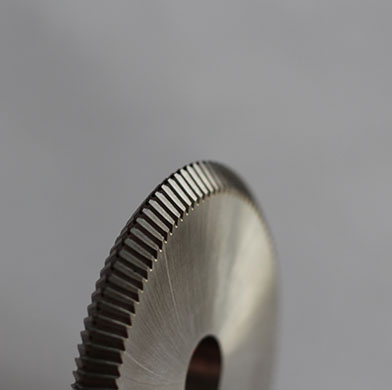

Cutter for Key Cutting Machine

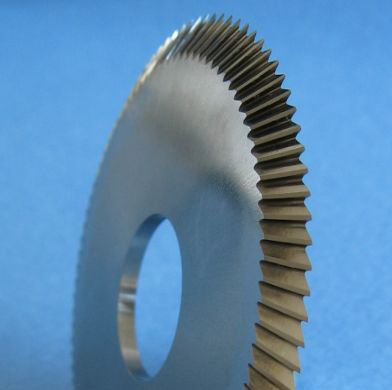

HSS Key Cutter

Double Angle Cutter for Key Duplicating Machines

Cutter for Key Cutting Machine

HSS Key Cutter



Ref. JMA Machine Types Material

rozměr 1 mm

rozměr 2mm rozměr 3mm rozměr 4 Z rozměr 5mm
FP1 OREGON HSS 25 10 10 100° 60 0,1
FP3 KIS, SPRINT HSS 50 12 6 90° 80 0,15
FP4 KIS HSS 53 12,7 6,35 45/1 72 0,6
FP5 JMA HSS 57 12,7 5 90° 80 0,15
FP6 KIS, SPRINT HSS 60 12,7 5 84° 140 0,1
FP11/ECCO-009 ECCO/ECCO-PLUS HSS 63 16 5 84° 80 1
FP12 TUSCON HSS 63 16 5 80° 80 1,25
FP13 DALLAS HSS 63 16 5 84° 100 1
CU14 ECCO/ECCO-PLUS HSS 63 16 5 80° 80 1,25
FP16 PROCODE HSS 70 16 5,2 76° 100 1
FP24 DAKOTA = P01 DAKOTA, ERREBI HSS 80 16 5 84° 110 1
FP24 ERREBI SARATOGA, NEVADA HSS 80 16 5 84° 110 1,25



Side Milling Cutter



Side Milling Cutter for Key Duplicating Machines

Side Clearance Cutter for Key Duplicating Machines

Side Milling Cutter for Key Duplicating Machines

Side Clearance Cutter for Key Duplicating Machines



Ref. JMA Machine Types Material

rozměr 1 mm

rozměr 2mm mm Z
FP7 ECCO BIT, DETROIT HSS 63 16 1,25 80
FP8 ECCO BIT, DETROIT HSS 63 16 1,4 80
FP17 TITAN BIT, SARATOGA,
YAKARTA
HSS 80 16 1,25 100
FP18 ATLANTA, TOPEKA HSS 80 22 1,25 100
FP19 SARATOGA, YAKARTA, TITAN BIT, DAKOTA HSS 80 16 1,4 100
FP20 ATLANTA, TOPEKA, DUPLEX, KANSAS HSS 80 22 1,4 100
FP21 ATLANTA, TOPEKA HSS 80 22 1,5 100



Milling Slot Cutters

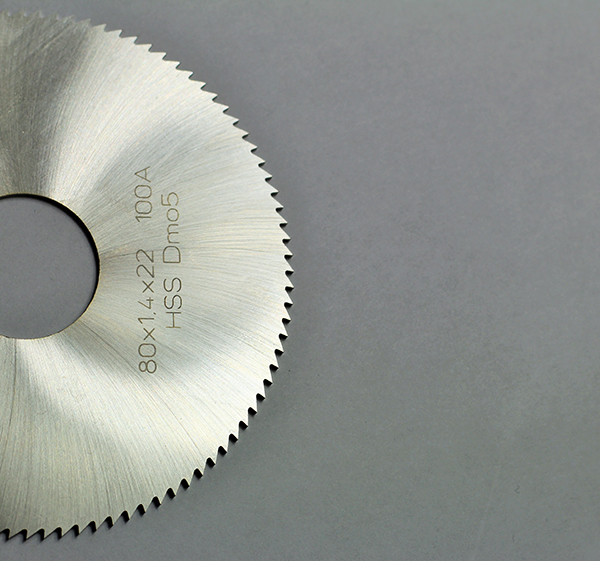

Milling Slot Cutter - Saw Blade for Key Duplicating machines

Milling Slot Cutter - Saw Blade for Key Duplicating machines



Ref. JMA Machine Types Material

mm

mm mm Z
FP9 ECCO BIT HSS 63 16 1 80
FP10 ECCO FORD, ECCO ABBLOY, PASADENA, HSS 63 16 2,4 80
FP22 TITAN BIT, DAKOTA, SARATOGA HSS 80 16 1 100
FP23 DUPLEX, ATLANTA, TOPEKA HSS 80 22 1 100
  TITAN, DAKOTA, SARATOGA, YAKARTA HSS-Co 80 16 1,4 100
FP26 G, SENNA, DAKOTA, SARATOGA, YAKARTA HSS 80 16 1,5 100



Narrow Side and Face Milling Cutters According DIN 138 Cobalt 5%

Coarse Tooth Pitch

Narrow side and face milling cutters according DIN 138 Cobalt 5%

Narrow Side and Face Milling Cutters According DIN138 Cobalt 5% with Coarse Tooth Pitch:

Diameter Thickness Bore Teeth Nr.
63 1,6 22 16
63 2 22 16
63 2,5 22 16
63 3 22 16
63 4 22 16
63 5 22 16
63 6 22 16
80 1,6 27 20
80 2 27 20
80 2,5 27 20
80 3 27 20
80 4 27 20
80 5 27 20
80 6 27 20
100 1,6 32 24
100 2 32 24
100 2,5 32 24
100 3 32 24
100 4 32 24
100 5 32 24
100 6 32 24
100 8 32 24
125 1,6 32 26
125 2 32 26
125 2 32 26
125 3 32 26
125 4 32 26
125 5 32 26
125 6 32 26
125 8 32 26
125 10 32 26
160 2,5 40 30
160 3 40 30
160 4 40 30
160 5 40 30
160 6 40 30
160 8 40 30
160 10 40 30
160 12 40 30



Narrow Side and Face Milling Cutters according DIN138 Cobalt 5% with Coarse Tooth Pitch Strenght HSSE / HSS Co5
Recomended cutting speed
Free–cutting steels, general construction steels ≤ 600 MPa 37,5
General construction steels, steel castings ≤ 850 MPa 32,5

Fine Tooth Pitch

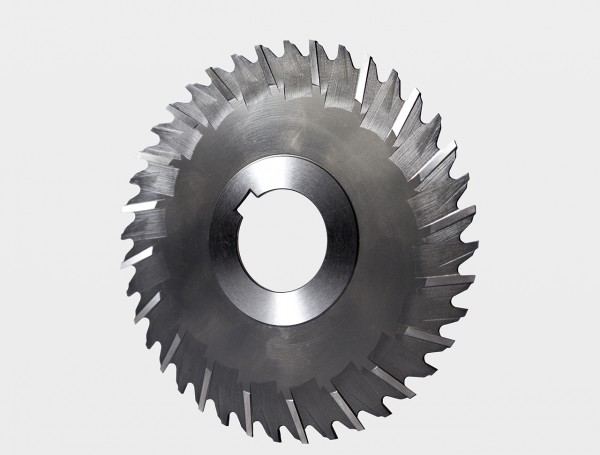

Narrow side and face milling cutters according DIN 138 Cobalt 5%

Narrow Side and Face Milling Cutters According DIN138 Cobalt 5% with fine Tooth Pitch:

Diameter Thickness Bore Teeth Nr.
50 1,6 16 24
50 2 16 24
50 2,5 16 24
50 3 16 24
50 3,5 16 24
50 4 16 24
50 5 16 22
63 1,6 22 28
63 2 22 28
63 2,5 22 28
63 3 22 28
63 3,5 22 28
63 4 22 28
63 5 22 28
63 6 22 28
80 1,6 27 32
80 2 27 32
80 2,5 27 32
80 3 27 32
80 3,5 27 32
80 4 27 32
80 5 27 32
80 6 27 32
100 1,6 32 36
100 2 32 36
100 2,5 32 36
100 3 32 36
100 3,5 32 36
100 4 32 36
100 5 32 36
100 6 32 36
100 8 32 28
125 1,6 32 40
125 2 32 40
125 2,5 32 40
125 3 32 40
125 3,5 32 40
125 4 32 40
125 5 32 40
125 6 32 40
125 8 32 40
125 10 32 32
160 2 40 44
160 2,5 40 44
160 3 40 44
160 3,5 40 48
160 4 40 44
160 5 40 44
160 6 40 44
160 8 40 36
160 10 40 36
160 12 40 36
200 2 40 52
200 2,5 40 52
200 3 40 52
200 4 40 52
200 5 40 52
200 6 40 52
200 8 40 40
200 10 40 40
200 12 40 40



Recomended Application for Narrow Side and Face Milling Cutters According DIN138 Cobalt 5% with Fine Tooth Pitch Strenght HSSE / HSS Co5
Recomended cutting speed
Free–cutting steels, general construction
steels
≤ 600 MPa 37,5
General construction steels, steel castings ≤ 850 MPa 32,5
Heat treatable steels ≤ 900 MPa 25
Tool steels high alloyed ≤ 1100 MPa 18
Cast iron ≤ 240 HB 30
Cast iron > 240 HB 22
Copper–zinc alloys, copper–tin alloys ≤ 800 MPa 60 - 100
Aluminium, Aluminium cast alloys Si ≤ 500 MPa 160 - 250



Narrow Side and Face Milling Cutters

Narrow Side and Face Milling Cutters

  • Narrow Side and Face Milling Cutters
  • HSS Double Angle Cutters for Key Cutting Machines
  • HSS Milling Slot Cutters for Key Cutting Machines



Diameter Thickness Hole Teeth Nr. Silca model Silca Code
60,4 1,4 3/8“ 70 Milling Slot Cutter SG14 Milling Slot Cutter SG14
60,4 0,76 3/8“ 70 Milling Slot Cutter SG15

Milling Slot Cutter

D712506ZB

80 1,3 22 100 Milling Slot Cutter SG5

Milling Slot Cutter

D705374ZB

80 2 22 100 Milling Slot Cutter SG10

Milling Slot Cutter

D700081ZB

80 1,5 22 100 Milling Slot Cutter SG1

Milling Slot Cutter

D700080ZB

80 1 22 100 Milling Slot Cutter SG3

Milling Slot Cutter

D700078ZB

80 1,5 22 100 Milling Slot Cutter SG4

Milling Slot Cutter

D700079ZB

80 1,4 22 100

Milling Slot Cutter SG7

Milling Slot Cutter HSS M35

Milling Slot Cutter

D703222ZB

80 1,75 22 100 Milling Slot Cutter SG8

Milling Slot Cutter

D702863ZB

80 1,25 22 100

Milling Slot Cutter SG23

Milling Slot Cutter FLAT

Milling Slot Cutter

D734963ZB

80 1,5 22 100 Milling Slot Cutter TiN coated

Milling Slot Cutter

D712450ZB

64,6 2 3/8“ 70 Milling Slot Cutter SG13

Milling Slot Cutter

D712450ZB

60,4 1,8 3/8“ 66 Milling Slot Cutter 05

Milling Slot Cutter

D702837ZB

64,6 2,4 9,52 70 Milling Slot Cutter 06

Milling Slot Cutter

D705040ZB

60,4 1,7 9,52 66 Milling Slot Cutter GB1

Milling Slot Cutter

D705690ZB
