Slitting saw and knives - production, service

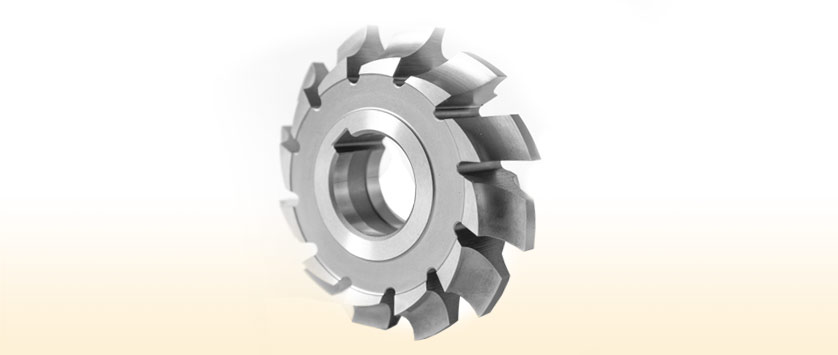

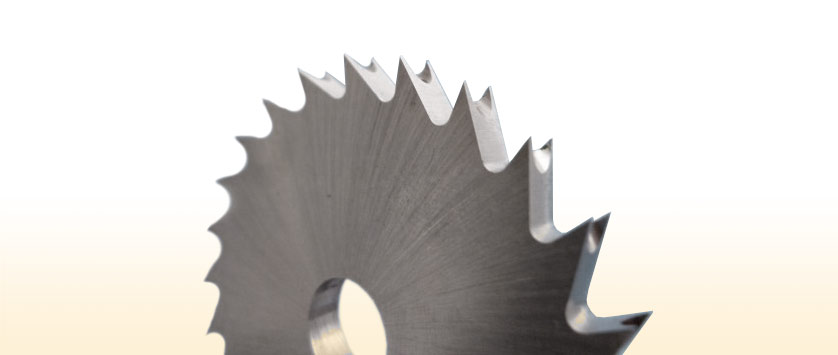

Concave and Convex Milling Cutters

Half Circular Milling Cutters Convex according DIN 856

Concave and Convex Milling Cutters

Diameter Thickness Hole Radius Teeth number HSS M2 Teeth Nr. Cobalt 5%
50 2 16 1 14 16
50 2,5 16 1,25 14 16
50 3 16 1,5 14 16
50 3,2 16 1,6 14
50 4 22 2 14 16
63 5 22 2,5 12 12
63 6 22 3 12 12
63 6,3 22 3,15 12
63 7 22 3,5 12 12
63 8 22 4 12 12
63 9 22 4,5 12 12
63 10 27 5 12 12
80 11 27 5,5 12 12
80 12 27 6 12 12
80 12,6 27 6,3 12
80 13 27 6,5 12
80 14 27 7 12
80 15 27 7,5 12
80 16 27 8 12 12
100 17 32 8,5 12
100 18 32 9 12
100 19 32 9,5 12
100 20 32 10 12 12
100 22 32 11 12
100 24 32 12 12 12
100 25 32 12,5 12
125 28 40 14 12
125 32 32 15 12
125 32 32 16 12
125 36 40 18 12
125 40 32 20 12
160 50 40 25 12

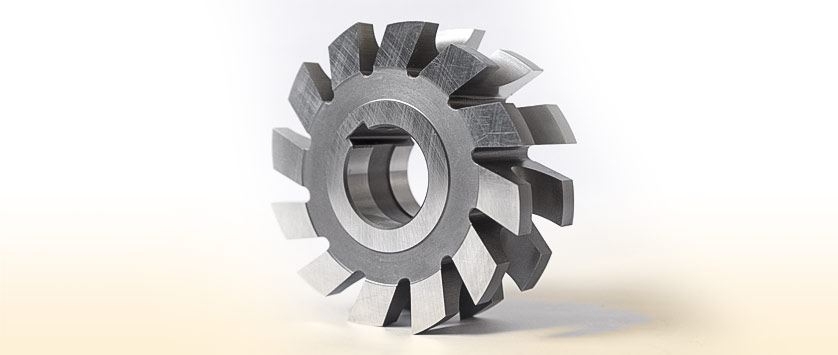

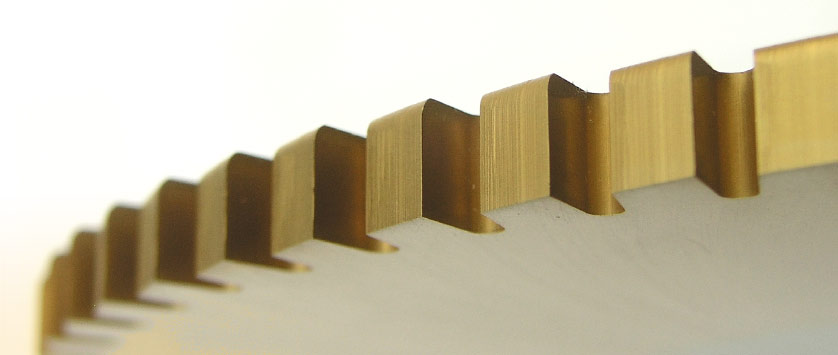

Concave Milling Cutters halfcircular

Concave and Convex Milling Cutters

HSS or VHM concave and convex milling cutters for halfcircular and quartercircular cutting. Concave solid carbide saw quarter circle or semi-circle on left or right with diameter 15 mm - 200 mm are made on demand.

Clients may define the following parameters:

  • diameter of milling cutter
  • central hole of milling cutter
  • keyway of milling cutter
  • thickness of cut of milling cutter
  • teeth number of milling cutter
  • tooth shape of milling cutter
  • cutting angles on tooth edges of milling cutter

Milling cutter range is ø 20 mm - ø 315 mm with thicknesses ranging 0,2 mm - 6 mm in variable increments with tooth forms: A - B - BW. All standard saws are available in HP-GRIND execution but are readily available in VAPO or P.V.D. (Physical Vapour Deposition) coated execution. The above-mentioned examples of slitting saws are only a small overview of our production posibilities. We are ready to produce also different tools according to your documentation like prismatic cutters, gear milling cutters, profile cutters, shell end mills cutters, side and face milling cutters, halfcircle milling cutters convex, half circle milling cutters concave, corner rounding milling cutters, single angle milling cutters, double angle milling cutters , HSS Side Chip Clearance Saws straight teeth, M2 Side Chip Clearance Saws staggered tooth, HSS Side and Face Cutters straight teeth, HSS Side and Face Cutters staggered teeth.

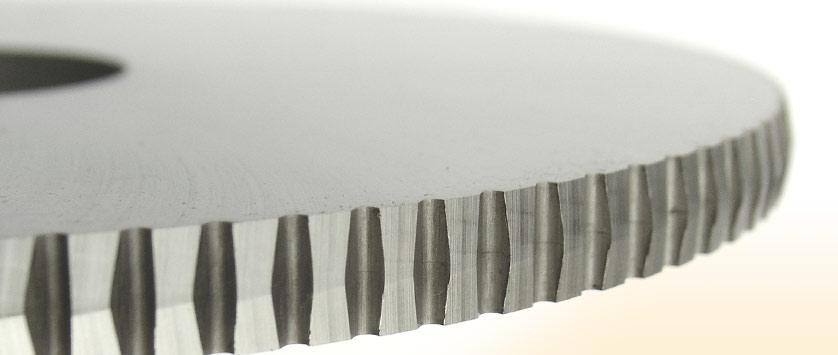

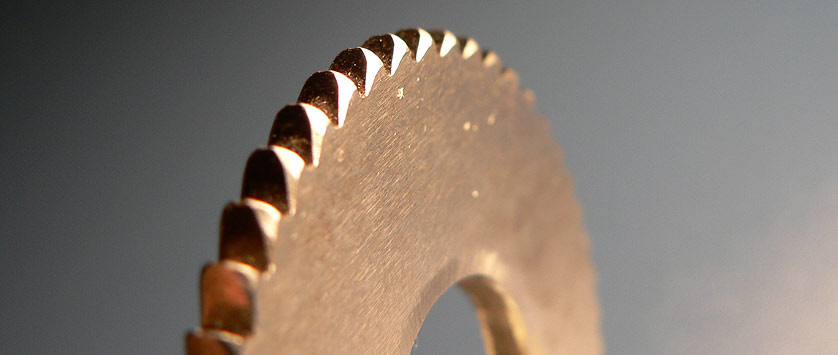

HSS Convex Milling Cutters

Concave and Convex Milling Cutters

HSS or VHM convex milling cutters with fine pitch for milling of halfcirucular grooves. These cutters will maintain their form throughout their life, provided that on resharpening, the face of the tooth is ground Radial-to-Center. OD from 30 mm to. 210 mm. Thickness 0,5-20 mm. Coatings TIN and TIALN.

Clients may define the following parameters:

  • diameter of milling cutter
  • central hole of milling cutter
  • keyway of milling cutter
  • thickness of cut of milling cutter
  • teeth number of milling cutter
  • tooth shape of milling cutter
  • cutting angles on tooth edges of milling cutter



Dimensions Pinhole Teeth number Radius
40 x 3,0 mm 15 mm 46 R 1,5
50 x 3,0 mm 25 mm 48 R 1,5
50 x 4,0 mm 13 mm 48 R 2,0
60 x 3,0 mm 16 mm 50 R 1,5
60 x 4,0 mm 16 mm 50 R 2,0
63 x 5,0 mm 16 mm 30 R 2,0
63 x 5,0 mm 16 mm 30 R 2,5

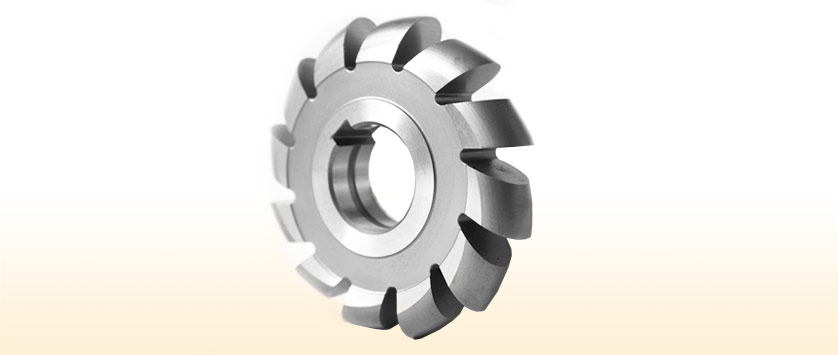

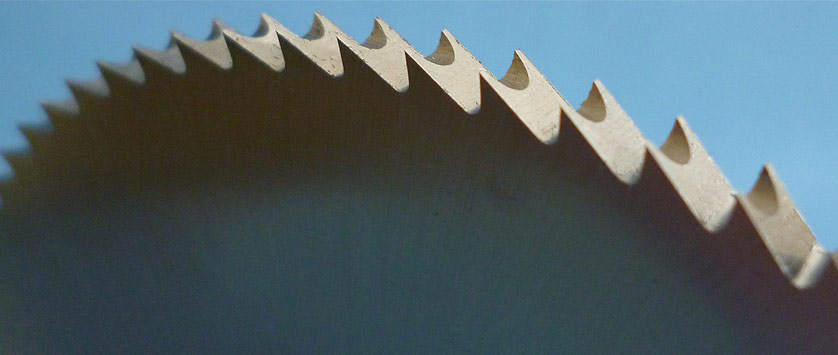

Half Circular Milling Cutters Concave According DIN 855A

Concave and Convex Milling Cutters

Diameter Thickness Hole Radius Teeth Nr. HSS M2 Teeth Nr. Cobalt 5%
50 6 16 1 14
50 6 16 1,25 14
50 8 16 1,6 14
50 9 16 2 14
63 10 22 2,5 12 14
63 12 22 3 12
63 12 22 3,15 12
63 16 22 3,5 12
63 16 22 4 12
63 18 22 4,5 12
63 20 22 5 12 10
80 24 27 6 12 10
80 24 27 6,3 12
80 24 27 7 12
80 32 27 8 12 10
100 32 32 9 12
100 36 32 10 12 10
100 40 32 12 12 10
100 40 32 12,5 12
125 50 32 16 10
125 60 32 20 10



Convex Milling Cutters halfcircular

Concave and Convex Milling Cutters

HSS or VHM concave and convex milling cutters for halfcircular and quartercircular cutting. Concave solid carbide saw quarter circle or semi-circle on left or right with diameter 15 mm - 200 mm are made on demand.

Clients may define the following parameters:

  • diameter of milling cutter
  • central hole of milling cutter
  • keyway of milling cutter
  • thickness of cut of milling cutter
  • teeth number of milling cutter
  • tooth shape of milling cutter
  • cutting angles on tooth edges of milling cutter

Milling cutter range is ø 20 mm - ø 315 mm with thicknesses ranging 0,2 mm - 6 mm in variable increments with tooth forms: A - B - BW. All standard saws are available in HP-GRIND execution but are readily available in VAPO or P.V.D. (Physical Vapour Deposition) coated execution. The above-mentioned examples of slitting saws are only a small overview of our production possibilities. We are ready to produce also different tools according to your documentation like prismatic cutters, gear milling cutters, profile cutters, shell end mills cutters, side and face milling cutters, halfcircle milling cutters convex, half circle milling cutters concave, corner rounding milling cutters, single angle milling cutters, double angle milling cutters , HSS Side Chip Clearance Saws straight teeth, M2 Side Chip Clearance Saws staggered tooth, HSS Side and Face Cutters straight teeth, HSS Side and Face Cutters staggered teeth.



HSS Concave Milling Cutters

Concave and Convex Milling Cutters

HSS or VHM concave milling cutters with fine pitch for milling of halfcirucular grooves. These cutters will maintain their form throughout their life, provided that on resharpening, the face of the tooth is ground Radial-to-Center. OD from 30 mm to. 210 mm. Thickness 0,5-20 mm. Coatings TIN and TIALN.

Clients may define the following parameters:

  • diameter of milling cutter
  • central hole of milling cutter
  • keyway of milling cutter
  • thickness of cut of milling cutter
  • teeth number of milling cutter
  • tooth shape of milling cutter
  • cutting angles on tooth edges of milling cutter
Dimensions Pinhole Teeth number Radius
40 x 3,0 mm 15 mm 46 R 1,5
50 x 3,0 mm 25 mm 48 R 1,5
50 x 4,0 mm 13 mm 48 R 2,0
60 x 3,0 mm 16 mm 50 R 1,5
60 x 4,0 mm 16 mm 50 R 2,0
63 x 4,0 mm 16 mm 30 R 2,0
63 x 5,0 mm 16 mm 30 R 2,5



Corner Rounding Milling Cutters, Concave

Concave and Convex Milling Cutters
Material: High-speed steel HSS Standard
CSN: 222234, ~DIN 6513, ~ ISO 3860



Convex Milling Cutters quartercircular left, right

Concave and Convex Milling Cutters

HSS or VHM concave and convex milling cutters for halfcircular and quartercircular cutting. Concave solid carbide saw quarter circle or semi-circle on left or right with diameter 15 mm - 200 mm are made on demand.

Clients may define the following parameters:

  • diameter of milling cutter
  • central hole of milling cutter
  • keyway of milling cutter
  • thickness of cut of milling cutter
  • teeth number of milling cutter
  • tooth shape of milling cutter
  • cutting angles on tooth edges of milling cutter

Milling cutter range is ø 20 mm - ø 315 mm with thicknesses ranging 0,2 mm - 6 mm in variable increments with tooth forms: A - B - BW. All standard saws are available in HP-GRIND execution but are readily available in VAPO or P.V.D. (Physical Vapour Deposition) coated execution. The above-mentioned examples of slitting saws are only a small overview of our production possibilities. We are ready to produce also different tools according to your documentation like prismatic cutters, gear milling cutters, profile cutters, shell end mills cutters, side and face milling cutters, halfcircle milling cutters convex, half circle milling cutters concave, corner rounding milling cutters, single angle milling cutters, double angle milling cutters , HSS Side Chip Clearance Saws straight teeth, M2 Side Chip Clearance Saws staggered tooth, HSS Side and Face Cutters straight teeth, HSS Side and Face Cutters staggered teeth.



Concave Milling Cutters quartercircular left, right

Concave and Convex Milling Cutters

HSS or VHM concave and convex milling cutters for halfcircular and quartercircular cutting. Concave solid carbide saw quarter circle or semi-circle on left or right with diameter 15 mm - 200 mm are made on demand.

Clients may define the following parameters:

  • diameter of milling cutter
  • central hole of milling cutter
  • keyway of milling cutter
  • thickness of cut of milling cutter
  • teeth number of milling cutter
  • cutting angles on tooth edges of milling cutter

Milling cutter range is ø 20 mm - ø 315 mm with thicknesses ranging 0,2 mm - 6 mm in variable increments with tooth forms: A - B - BW. All standard saws are available in HP-GRIND execution but are readily available in VAPO or P.V.D. (Physical Vapour Deposition) coated execution. The above-mentioned examples of slitting saws are only a small overview of our production possibilities. We are ready to produce also different tools according to your documentation like prismatic cutters, gear milling cutters, profile cutters, shell end mills cutters, side and face milling cutters, halfcircle milling cutters convex, half circle milling cutters concave, corner rounding milling cutters, single angle milling cutters, double angle milling cutters , HSS Side Chip Clearance Saws straight teeth, M2 Side Chip Clearance Saws staggered tooth, HSS Side and Face Cutters straight teeth, HSS Side and Face Cutters staggered teeth.
