Slitting saw and knives - production, service

Bodies for CBN grinding wheels, bodies for DIA cutting wheels

GSP High-Tech Saws Company produces bodies for CBN and DIA cutting tools . These bodies for CBN and DIA cutting tools are made from HSS or CrV steel and they are ground with thickness tolerance +/- 0,01 mm.

There are teeth or grooves on the circumference in order to connect the body and the coating properly. Body thickness is narrowed in the teeth. Standard hardness for bodies for CBN and DIA cutting tools is 64 HRC for HSS bodies and 46 HRC for CrV bodies. Saw Bodies for diamond saw blades are made from high quality materials according to the standard FEPA. They are delivered hardened, tempered, straightened and tensioned ready for the welding on of segments.

The tools are made according to clients´ drawings. Following an agreement with the manufacturer it is possible to manufacture body of various diameters, dimensions of central hole with  required amount and dimension of grooves, all according to customer´s wishes. The maximum diameter of saw bodies for the production of diamond blade saws is 1500 mm.

Usage: After  welding of appropriate segments on the bodies for CBN and DIA cutting tools they are suitable to be used:

  • in masonry for the cutting of granite, marble, sandstone, etc.
  • in building industry (wall saws) for the cutting of concrete (reinforced concrete)
  • in ground construction for the cutting of asphalt

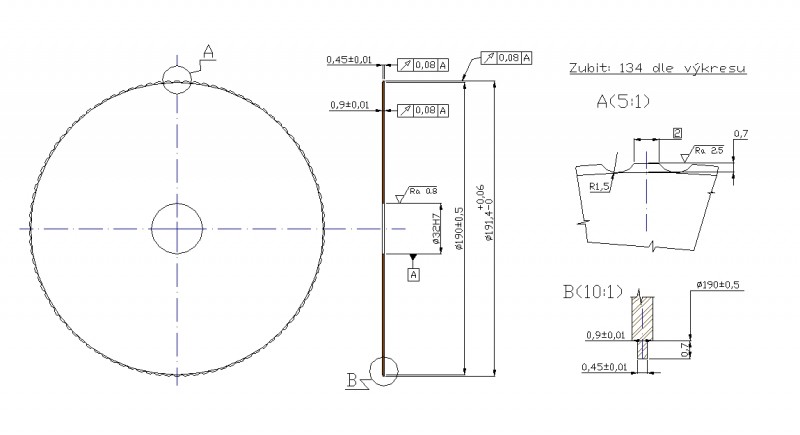

drawing CBN, DIA

Non-binding request - Bodies for CBN grinding wheels, bodies for DIA cutting wheels

Dear customer, you have the opportunity to make a preliminary request for this product. In the inquiry basket you can specify your product requirements according to the table, or you can enter any questions for the sales representative. The sales representative will contact you as soon as possible.
